2026 GIANT REVOLT 1

Giant

2026 GIANT REVOLT 1

$2,499.00
Colour ALPINE GREEN
Size XS
Enquire Now

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

Read full description ↓
About This Product

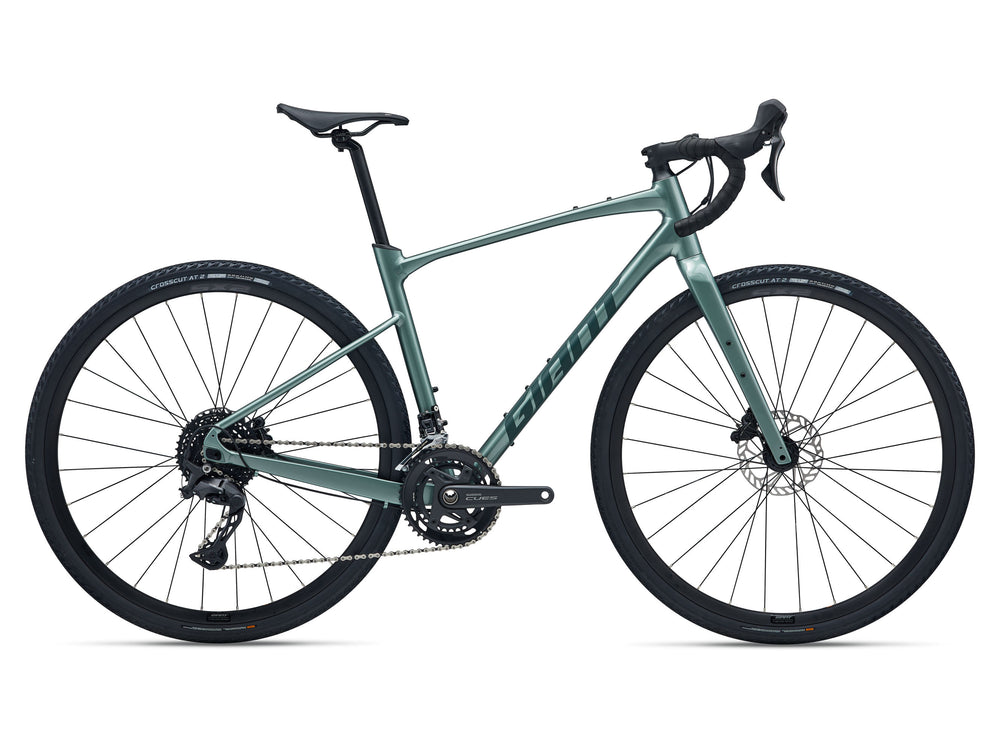

2026 GIANT REVOLT 1

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

2026 GIANT REVOLT 1
2026 GIANT REVOLT 1

2026 GIANT REVOLT 1 — Key Features

  • Fast and light Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
  • Tuned compliance Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • Adaptable to the terrain A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models
  • Advanced Composite Technology Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
  • D-Fuse Technology The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.
  • OverDrive Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
  • Tubeless System Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
  • Flip Chip - Dropout Allows riders to quickly adjust the geometry and rear-wheel tyre clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Product Details

Specifications & Fit

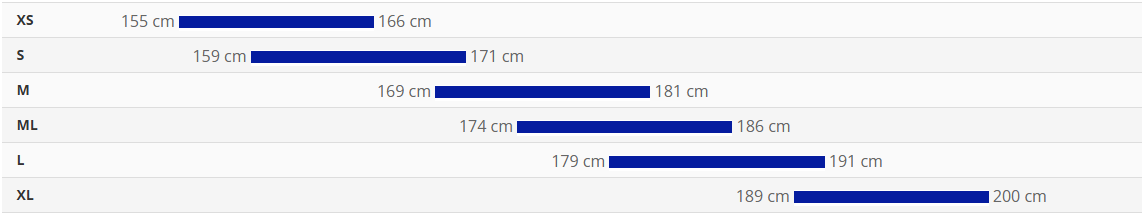

  • Sizing Chart

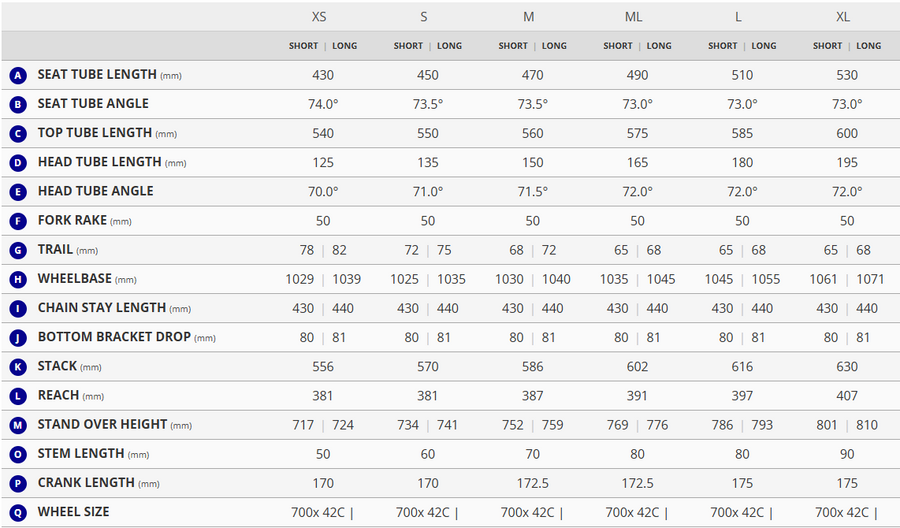

  • Geometry 1
    Geometry 2
  • SizesXS, S, M, M/L, L, XL
    ColoursAlpine Green
    FrameALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
    ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
    HandlebarGiant Contact XR D-Fuse, 31.8mm XS - 42cm, S - 42cm, M - 44cm, M/L - 44cm, L - 46cm, XL - 46cm
    GripsCork tape with gel
    StemGiant Contact, 8-degree XS - 50mm, S - 60mm, M - 70mm, M/L - 80mm, L - 80mm, XL - 90mm
    SeatpostGiant D-Fuse, alloy, 14mm offset
    SaddleGiant Grit
    PedalsN/A
    ShiftersShimano CUES U6030, 2x10
    Front DerailleurShimano CUES U6030
    Rear DerailleurShimano Cues U6020, Shadow+
    BrakesShimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
    Brake LeversShimano CUES U6030 hydraulic
    CassetteShimano CS-LG300, 11x39
    ChainKMC X11
    CranksetShimano Cues U6030-2, 32-46 XS - 170mm, S - 170mm, M - 172.5mm, M/L - 172.5mm, L - 175mm, XL - 175mm
    Bottom BracketShimano, threaded
    RimsGiant S-X2 Disc wheelset, alloy
    HubsGiant alloy, 12mm thru-axle
    SpokesStainless
    TyresGiant CrossCut AT 2, 700x38c, tubeless
    ExtrasTubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
    Max Tyre Clearance53mm

    Specifications are subject to change without notice.
