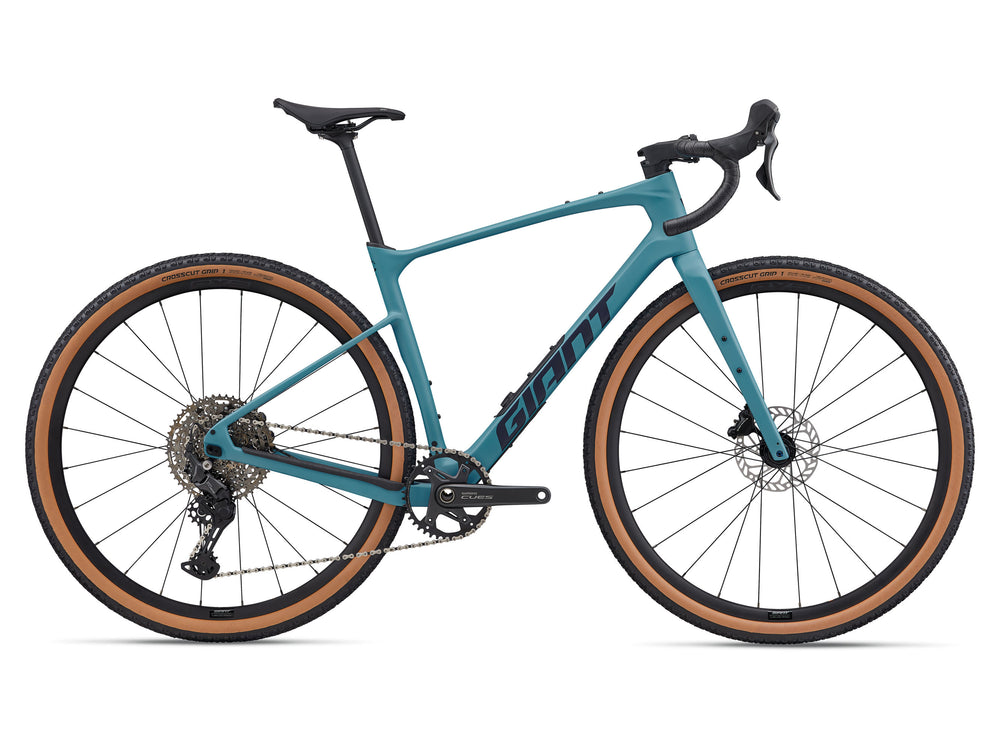

2026 GIANT REVOLT ADVANCED 3

Giant

2026 GIANT REVOLT ADVANCED 3

$3,199.00
Colour AQUARIUM
Size XS
Enquire Now

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Read full description ↓
About This Product

2026 GIANT REVOLT ADVANCED 3

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

2026 GIANT REVOLT ADVANCED 3
2026 GIANT REVOLT ADVANCED 3

2026 GIANT REVOLT ADVANCED 3 — Key Features

  • Fast and light Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
  • Tuned compliance Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • Adaptable to the terrain A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post. *On select models
  • Advanced Composite Technology Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
  • D-Fuse Technology The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride further, faster.
  • OverDrive Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
  • Tubeless System Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Product Details

Specifications & Fit

  • Sizing Chart
  • Geometry 1
    Geometry 2
  • SizesXS, S, M, M/L, L, XL
    ColoursAquarium
    FrameAdvanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
    ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
    HandlebarGiant Contact XR D-Fuse, 31.8mm XS - 42cm, S - 42cm, M - 44cm, M/L - 44cm, L - 46cm, XL - 46cm
    GripsStratus Lite 3.0
    StemGiant Contact AeroLight, -10 degree XS - 50mm, S - 60mm, M - 70mm, M/L - 80mm, L - 80mm, XL - 90mm
    SeatpostGiant D-Fuse, composite, 14mm offset
    SaddleGiant Grit
    PedalsN/A
    ShiftersShimano CUES U6030, 1x11
    Front DerailleurN/A
    Rear DerailleurShimano Cues U6000, Shadow+
    BrakesShimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
    Brake LeversShimano CUES U6030 hydraulic
    CassetteShimano CS-LG400, 11x50
    ChainKMC X11
    CranksetShimano Cues U6030, 42 XS - 170mm, S - 170mm, M - 172.5mm, M/L - 172.5mm, L - 175mm, XL - 175mm
    Bottom BracketShimano, press fit
    RimsGiant P-X2 Disc wheelset, alloy
    HubsGiant alloy, 12mm thru-axle
    SpokesSapim
    TyresGiant Crosscut Grip, 700x45c, tubeless
    ExtrasTubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
    Max Tyre Clearance53mm

    Specifications are subject to change without notice.
