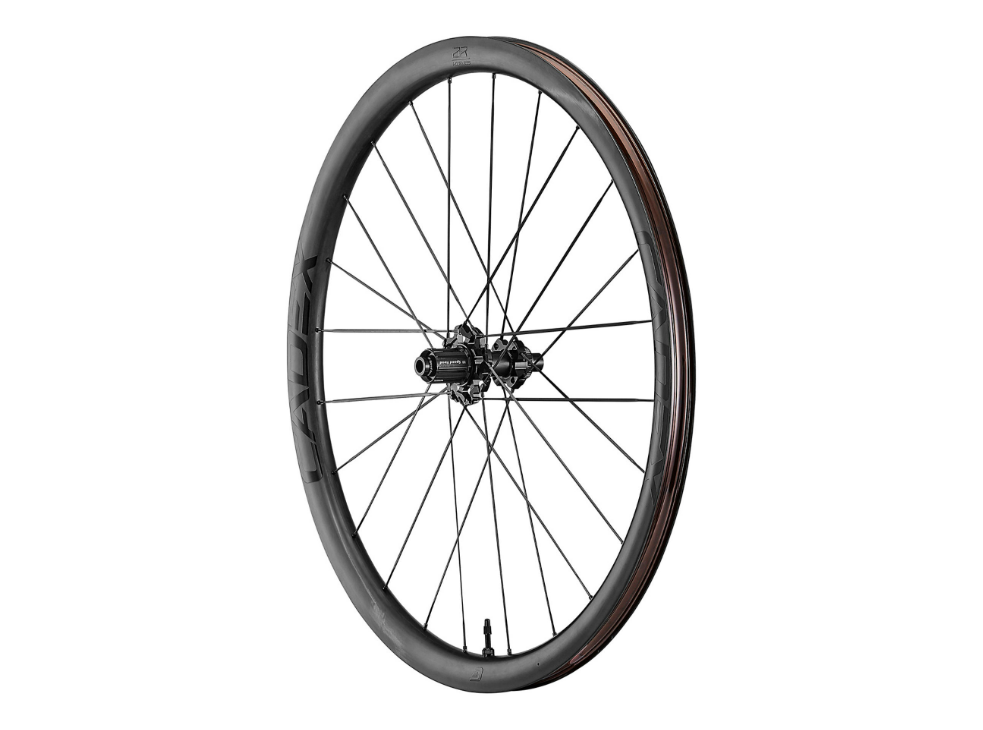

CADEX AR 35 DISC WHEELS

$2,099.99
WHEEL FRONT
Enquire Now

A hookless bead and precision reinforced carbon layup create an exceptionally strong structure with best-in-class weight. A 25mm inner rim width produces a more uniform tyre shape and better handling. The innovative 6...

Read full description ↓
About This Product

CADEX AR 35 DISC WHEELS

A hookless bead and precision reinforced carbon layup create an exceptionally strong structure with best-in-class weight. A 25mm inner rim width produces a more uniform tyre shape and better handling. The innovative 60-tooth ratchet freehub and ultrasmooth ceramic bearings deliver a responsive feel, while high-tensile-strength carbon spokes and Dynamic Balanced Lacing boost lateral stiffness. It all adds up to class-leading speed, efficiency and durability for superior all-road

CADEX AR 35 DISC WHEELS — Key Features

  • Hookless rim technology offers XC-level impact resistance by providing a more consistent carbon fibre structure at the rim wall. It also creates a rounder tyre shape for better grip and sidewall support when cornering.
  • Precision reinforced carbon lay-up places carbon fibre only where needed, creating a super strong and lightweight rim.
  • 25mm inner width and hookless rim construction offer a shorter, wider tyre contact patch for reduced power loss and increased impact absorption.
  • A wide inner width supports higher volume 28–45mm road and gravel tyres, allowing lower tyre pressures and more confident handling.
  • High-tensile-strength, ultralight CADEX carbon spokes and precision reinforced carbon lay-up combine for class-leading stiffness-to-weight.
  • Custom tuned Dynamic Balanced Lacing (DBL) technology sets spokes at a wider bracing angle and evens out tension under pedalling force, producing a stiffer, more efficient wheel with outstanding power transfer.
  • CADEX ceramic bearings offer 1.5x smoother action than steel.
  • Lightweight CADEX R2-C60 hub with R-Drive features a DLC 60-tooth ratchet driver, durable flat spring and redesigned dust cover for instant engagement and long-lasting efficiency.
  • Integrated front hub design reinforces axle support and eliminates play by replacing end cap, bearing and bushing interface with an integrated axle running the length of the hub.
Product Details

Specifications & Fit

  • Rim MaterialCarbon
    Rim TypeHookless Clincher
    TubelessCADEX Tubeless System (rim tape and valve included)
    Suggested Tire Size700 x 28C – 700 x 45C
    Rim Height35mm
    Rim Outer Width31mm
    Rim Inner Width25mm
    ETRTO622-25
    Front HubCADEX R2-C60 Hub, Centerlock
    Rear HubCADEX R2-C60 Hub, 60T Ratchet Driver, Centerlock
    Freehub SystemR-Drive
    Hub CompatibilitySRAM XDR / SHIMANO HG / CAMPAGNOLO N3W
    BearingCADEX Ceramic Bearings
    Front Axle100x12 Thru Axle
    Rear Axle142x12 Thru Axle
    Spokes (Front)Aero Carbon Spoke
    Lacing (Front)21H
    Spokes (Rear)Aero Carbon Spoke
    Lacing (Rear)24H
    Nipple TypeAlloy
    Warranty2 Years
    Incident Replacement5 years (registered original owner)
    Weight (Pair)1270g

    Specifications are subject to change without notice.
