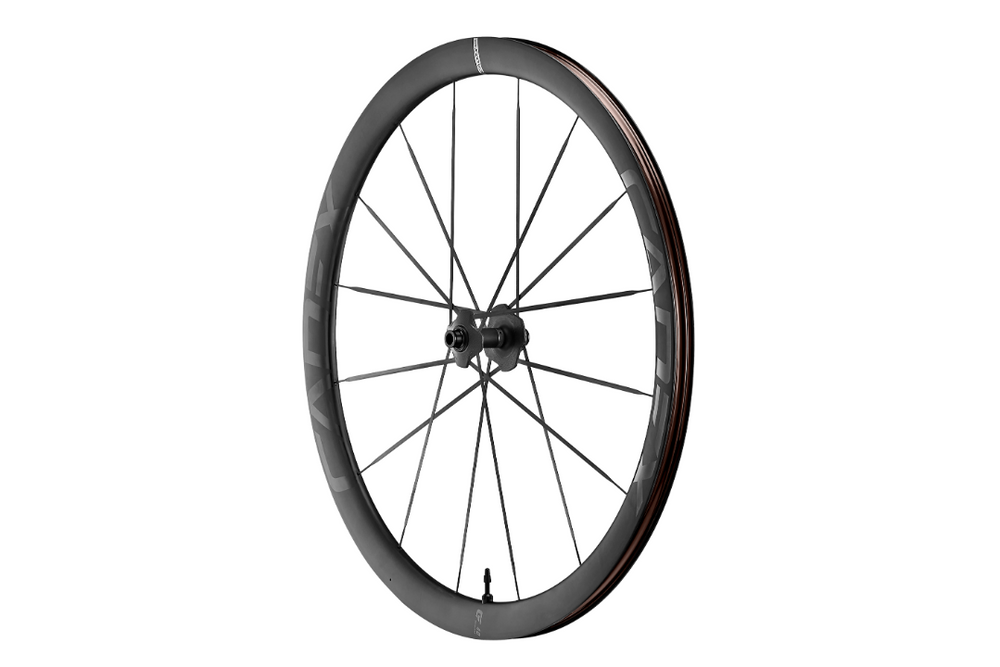

CADEX MAX 40 DISC WHEELS

$3,249.99
WHEEL FRONT
Enquire Now

With cutting-edge hub-and-spoke technology and a new 40mm rim profile, thisis the lightest WheelSystem ever created by CADEX. Super Aero bladed carbon spokes are seamlessly integrated with thin aero hub flanges to red...

Read full description ↓
About This Product

CADEX MAX 40 DISC WHEELS

With cutting-edge hub-and-spoke technology and a new 40mm rim profile, this
is the lightest WheelSystem ever created by CADEX. Super Aero bladed carbon spokes are seamlessly integrated with thin aero hub flanges to reduce weight and drag, while Dynamic Balanced Lacing technology sets the spokes at a wider bracing angle to stabilise tension under force and boost power transfer. The 40mm deep carbon rims help keep overall weight at just 1249 grams, and a broad 22.4mm hookless inner rim width offers better tire sidewall support and improved control.

CADEX MAX 40 DISC WHEELS — Key Features

  • Integrated spoke, hub flange and aero hub design for optimal weight savings, better power transfer, and improved aerodynamics.
  • CADEX hookless rim technology with optimised carbon layup improves durability and tyre performance at a superlight weight.
  • High-tensile-strength integrated CADEX Super Aero spokes with hidden nipples and independent internal spoke tension adjustment minimise lateral flex for more efficient acceleration and climbing.
  • Dynamic Balanced Lacing technology sets spokes at a wider bracing angle to stabilise spoke tension levels under pedalling force, producing a stiffer, more efficient wheel with outstanding power transfer.
  • 48-tooth ratchet engagement in the CADEX R3-C48 Aero Hub offers more immediate power transfer.
  • CADEX Ratchet Wave Spring ensures the outer and inner ratchet rings engage with consistent and even force for smoother action and better rolling efficiency.
  • Broad 22.4mm inner rim width creates a rounder tyre profile and increased tyre contact patch for better sidewall support, improved handling, and less rider fatigue.
  • 40mm rim profile delivers exceptional stability and aero benefits for all-day efforts.
  • In-mould carbon surface graphic technology blends CADEX logos into the carbon rim surface without the need for etching or decals.
Product Details

Specifications & Fit

  • Rim MaterialCarbon
    Rim TypeHookless
    TubelessCADEX Tubeless System (rim tape and valve kit included)
    Suggested Tyre Size700 x 25C – 700 x 32C
    Rim Height40mm
    Rim Outer Width28mm
    Rim Inner Width22.4mm
    ETRTO622-22
    Front HubCADEX R3 , Centerlock One-piece integrated hub and spokes
    Rear HubCADEX R3-C48, Ratchet Driver, Centerlock One-piece integrated hub and spokes
    Hub CompatibilityShimano / SRAM XDR / Campagnolo N3W
    BearingsCeramic
    Front Axle100x12mm Thru Axle
    Rear Axle142x12mm Thru Axle
    Front SpokesSuper Aero Carbon Spoke
    Front LacingDBL, 16H
    Rear SpokesSuper Aero Carbon Spoke
    Rear LacingDBL, 24H
    NippleHidden Integrated Alloy Nipple
    Weight (Pair)1249g (with Shimano freehub)

    Specifications are subject to change without notice.
