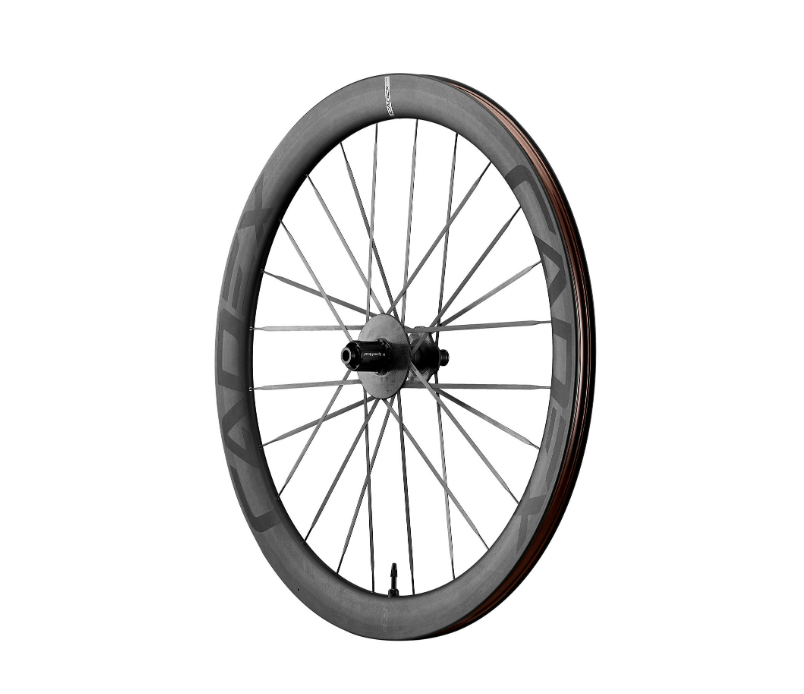

CADEX MAX 50 DISC WHEELS

Cadex

CADEX MAX 50 DISC WHEELS

$2,999.99
WHEEL FRONT
Enquire Now

The Max 50 WheelSystem delivers refined race-day performance through an ultralight, super-stiff aero system. At 1290g, its Max integrated hub,Super Aero carbon spokes and Dynamic Balanced Lacing optimize efficiency an...

Read full description ↓
About This Product

CADEX MAX 50 DISC WHEELS

The Max 50 WheelSystem delivers refined race-day performance through an ultralight, super-stiff aero system. At 1290g, its Max integrated hub,Super Aero carbon spokes and Dynamic Balanced Lacing optimize efficiency and power transfer for sharp acceleration and confident control.

CADEX MAX 50 DISC WHEELS — Key Features

  • 50mm Aero Rim Profile – A deep 50mm rim profile maximizes aerodynamic efficiency, reducing drag for sustained high-speed performance in race conditions.
  • Integrated Max Hub And Spoke Technology – A one-piece hub, flange, spoke, and rim structure forms a fully integrated system that minimizes drag, smooths airflow, and maximizes real-world efficiency at speed.
  • Precision Reinforced Carbon Layup – High-tensile fibres are strategically placed only where needed to create a strong, torsionally stiff structure while minimizing overall weight.
  • CADEX Super Aero Carbon Spokes – High-tensile integrated carbon spokes with hidden nipples and independent internal tensioning minimize lateral flex for efficient acceleration and responsive climbing.
  • Dynamic Balanced Lacing (DBL) – A wider bracing angle and balanced spoke tension under pedaling load result in a stiffer wheel with outstanding power transfer and handling precision.
  • 22.4mm Inner Width – A wide 22.4mm internal rim creates a more efficient tyre profile with an increased contact patch, improving sidewall support and confident handling at speed.
  • CADEX R3-C48 Aero Hub – An aerodynamic hub design with a 48-tooth ratchet delivers fast, direct engagement for immediate power transfer during accelerations and surges.
  • Ratchet Wave Spring System – A wave spring design ensures consistent, balanced ratchet engagement, resulting in smoother operation and improved rolling efficiency.
  • CADEX Hookless Rim Technology – An optimized carbon layup and hookless rim design reduce weight while improving durability and tyre stability under high-speed loads.
  • In-Mould Carbon Graphics – CADEX logos are integrated directly into the carbon surfacefor a clean, premium finish with no decals, no added weight, and no risk of fading.
Product Details

Specifications & Fit

  • Rim MaterialCarbon
    Rim TypeHookless
    TubelessCADEX Tubeless System (rim tape and valves included)
    Suggested Tyre Size700 x 25C – 700 x 32C
    Rim Height50mm
    Rim Outer Width30mm Rim Inner Width 22.4mm
    ETRTO622-22
    Front HubCADEX R3 , Centerlock, One-piece integrated hub and spokes
    Rear HubCADEX R3-C48, Ratchet Driver, Centerlock, One-piece integrated hub and spokesHub Compatibility: Shimano / SRAM XDR / Campagnolo N3W
    BearingCeramic
    Front Axle100x12 Thru Axle
    Rear Axle142x12 Thru Axle
    Spokes (Front)Super Aero Carbon Spoke
    Lacing (Front)DBL, 16H
    Spokes (Rear)Super Aero carbon
    Lacing (Rear)DBL, 24H
    NippleIntegrated titanium
    Warranty2 years (Lifetime registered original owner)
    Incident Replacement5 years (registered original owner)
    Weight without Valve and Tape(Pair) 1250g
    Weight with Valve and Tape(Pair) 1290g

    Specifications are subject to change without notice.
