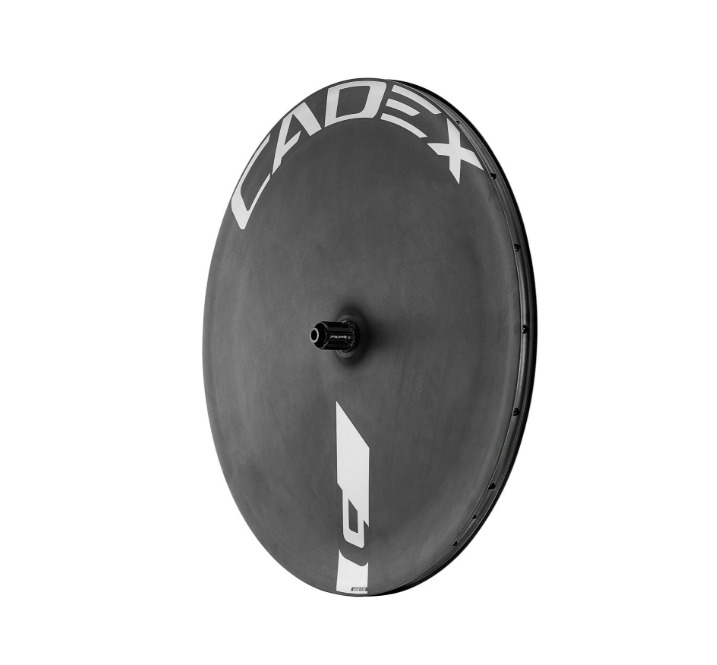

CADEX MAX AERO DISC 1K REAR WHEEL

Cadex

CADEX MAX AERO DISC 1K REAR WHEEL

$4,999.99
Enquire Now

Weighing only 1000g, the Max Aero Disc integrates ultralight carbon spokes with thin carbon hub flanges and lightweight hookless rims, all concealed beneath sleek ultrathin CADEX 1K carbon weave aero covers. This desi...

Read full description ↓
About This Product

CADEX MAX AERO DISC 1K REAR WHEEL

Weighing only 1000g, the Max Aero Disc integrates ultralight carbon spokes with thin carbon hub flanges and lightweight hookless rims, all concealed beneath sleek ultrathin CADEX 1K carbon weave aero covers. This design, which still allows the spokes to be independently tensioned, delivers unmatched aerodynamic efficiency and control. Race-tested by Team Jayco AlUla and Liv Jayco AlUla road pros and Ironman World Champions, it’s the ultimate aero WheelSystem to help you shave seconds and aim for PRs in the most challenging TTs and triathlons.

CADEX MAX AERO DISC 1K REAR WHEEL — Key Features

  • Integrated Max structure, featuring CADEX Aero Carbon spokes joined to a thin carbon hub flange and concealed beneath ultralight 1K carbon weave disc covers, enhances both lateral and torsional stiffness, while keeping the total weight to just 1000g.
  • High-tensile-strength CADEX Aero Carbon spokes with independent internal spoke tension adjustment reduce lateral flex, enabling more efficient acceleration and climbing.
  • Dynamic Balanced Lacing technology positions integrated spokes at a wider bracing angle, stabilizing tension under pedaling force and increasing efficiency.
  • 22.4mm inner rim width, combined with a continuous carbon fiber structure, delivers superior grip, added sidewall support, and exceptional cornering stability.
  • 3mm rim wall width provides better tire support during cornering, improves air transition from the tire sidewall to the wheel for optimized aerodynamics, and increases impact resistance.
  • Wider external dimensions of the rim shape provide maximum aerodynamic advantage in variable wind conditions.
  • Precision-machined CADEX R3-C40 aero hub reduces bearing load, while CADEX ceramic bearings generate 1.5 times less friction than steel bearings for improved efficiency.
Product Details

Specifications & Fit

  • Rim MaterialUltralight 1K Full Composite
    Rim Outer Width28.4mm
    Rim Inner Width22.4mm
    HubCADEX R3-C40, Ratchet Driver, Centerlock One-piece integrated hub and spokes
    Hub CompatibilitySRAM XDR / Shimano HG / Campagnolo
    BearingCADEX Ceramic
    Axle142x12 Thru Axle
    SpokesHidden Reinforced CADEX Aero Carbon Spoke
    LacingDBL, 20H
    NippleHidden Integrated Alloy Nipple
    Weightw/o valve 1000g (with Shimano freehub)
    Warranty2 years (registered original owner)
    Incident Replacement5 years (registered original owner only)

    Specifications are subject to change without notice.
