GIANT XCR WHEELSYSTEM

Giant

GIANT XCR WHEELSYSTEM

$1,399.99
WHEEL FRONT 15x110MM
Enquire Now

Lightweight, efficient, and stronger than ever, the XCR WheelSystem is built for today’s XC racing and beyond. With advanced carbon construction, DBL technology, and a next-generation hub system, it delivers explosive...

Read full description ↓
About This Product

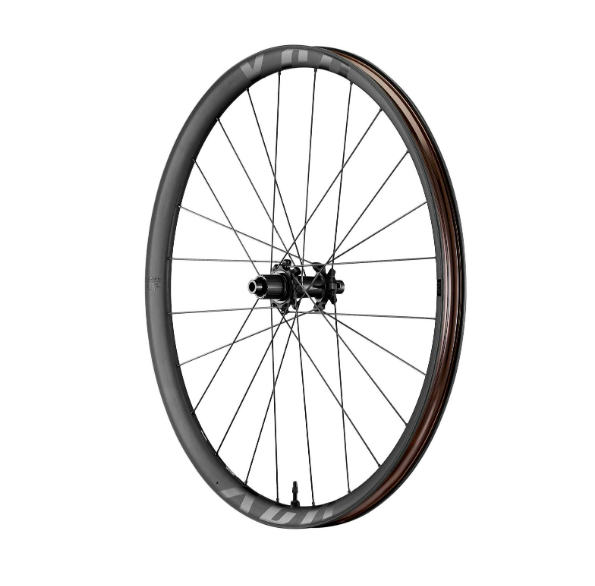

GIANT XCR WHEELSYSTEM

Lightweight, efficient, and stronger than ever, the XCR WheelSystem is built for today’s XC racing and beyond. With advanced carbon construction, DBL technology, and a next-generation hub system, it delivers explosive acceleration, precise handling, and proven World Championship performance on technical XC terrain

GIANT XCR WHEELSYSTEM — Key Features

  • Dynamic Balanced Lacing (DBL): Enlarged hub flange increases spoke bracing angles, balancing tension for superior lateral and torsional stiffness and more efficient power transfer.
  • High-Tensile-Strength Carbon Spokes: Six-tow carbon construction delivers up to 3× the impact resistance of standard designs while maximizing stiffness-to-weight for rapid acceleration.
  • Optimised Reinforced Layup: Strategic carbon placement enhances strength and stiffness while minimising weight for uncompromising race-day efficiency.
  • Helical-Bevel Ratchet Drive System: A 10° helical engagement between the hub and ratchet rings ensures efficient, consistent power transfer with reduced stress on components, while the 120-tooth helical ratchet delivers rapid 3° engagement for immediate response and precise power delivery.
  • Ratchet Wave Spring: Distributes even pressure for smoother engagement and improved rolling efficiency.
  • Wide Guard Technology: 5mm rounded-edge rim sidewalls provide superior impact protection and reduce pinch flats.
  • 30mm Inner Width: Supports lower tyre pressures for more traction and control.
Product Details

Specifications & Fit

  • MaterialCarbon
    Rim TypeHookless
    TubelessGiant Tubeless System (Rim Tape and Valve Kit Included)
    Suggested Tyre Size2.2 - 2.6”
    Rim Height29mm
    Rim Inner Width30mm
    ETRTO622x30
    Front HubAlloy, 6-Bolt
    Rear HubAlloy, 120T Helical-Bevel Ratchet Driver, 6-Bolt
    Hub CompatibilityShimano HG / MS, SRAM XD
    BearingSealed Cartridge
    Front Axle110x15 Thru Axle
    Rear Axle148x12 Thru Axle
    Front SpokesØ2.2mm Carbon Spoke
    Front Lacing20H, DBL, Straight Pull
    Rear SpokesØ2.2mm Carbon Spoke
    Rear Lacing24H, DBL, Straight Pull
    Nipple TypeAlloy
    Pair Weight(with tape/valve) 1,349g (Shimano MS) 1,346g (SRAM XD)
    Front Weight(with tape/valve) 619g
    Rear Weight(with tape/valve) 730g (Shimano MS) 727g (SRAM XD)

    Specifications are subject to change without notice.
