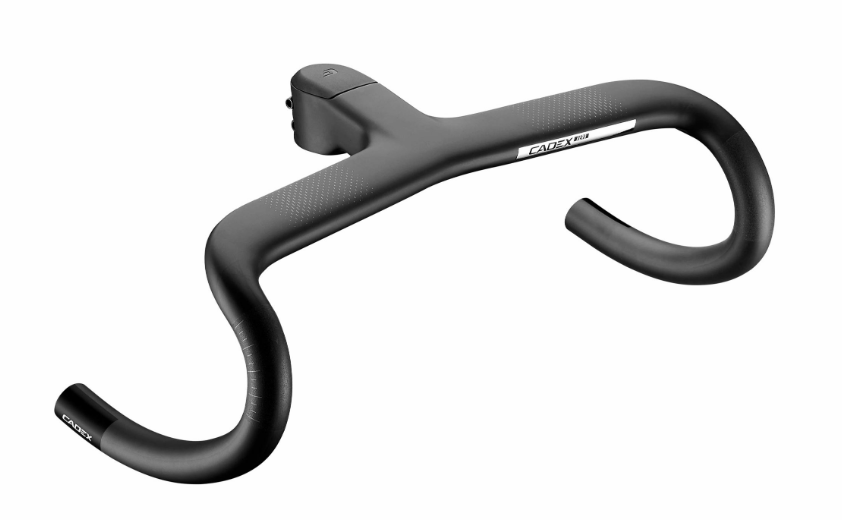

MY26 CADEX AERO INTEGRATED HANDLEBAR

Cadex

MY26 CADEX AERO INTEGRATED HANDLEBAR

$1,149.99
Size 420/390 x 110mm
Enquire Now

The redesigned CADEX Aero Integrated Handlebar is engineered to help you ride faster with more efficiency and control. One-piece, no-bond carbon construction delivers exceptional stiffness at a lower weight, while a f...

Read full description ↓
About This Product

MY26 CADEX AERO INTEGRATED HANDLEBAR

The redesigned CADEX Aero Integrated Handlebar is engineered to help you ride faster with more efficiency and control. One-piece, no-bond carbon construction delivers exceptional stiffness at a lower weight, while a forward-sweeping profile, refined aero tops, and race-optimised geometry put you in a faster, more aerodynamic and comfortable riding position.

MY26 CADEX AERO INTEGRATED HANDLEBAR — Key Features

  • Forward-sweeping design – A 6.5-degree front sweep improves comfort while promoting a narrower, more aerodynamic position.
  • Refined Aero Tops — A low-drag top profile slices through wind while giving your hands a comfortable, confident place to control and rest.
  • One-Piece Mould Manufacturing — The handlebar section is moulded as a single, no-bond T800/T1100 carbon piece with, cutting the weight, excess material, and flex of a traditional bonded bar.
  • Reduced Material – Shaves 70g off the previous generation.
  • Race-Optimised Geometry — A 72mm reach and narrower hood spacing place your hands in a natural position that doesn’t sacrifice speed.
  • Compact Drop & Race-Tuned Ergonomics — A 125mm drop and race-tuned flare make for quick transitions and stable handling through sprints, descents, and long efforts.
  • Adjustable Computer Mount — An included out-front mount adjusts from 2.5 to 17.5 degrees and integrates seamlessly with the underside of the bar to keep your computer securely in place.
Product Details

Specifications & Fit

  • MaterialCarbon
    Stem Angle-10 degrees
    Stem Clamp1 1/4" / 1 1/8" / OverDrive Aero (with carbon shim)
    Stem Length90 / 100 / 110 / 120 / 130 / 140mm
    Width (Drop to Drop)380 / 400 / 420mm
    Width (Hood to Hood)360 / 370 / 390mm
    Drop125mm
    Reach72mm
    Flare4.8° (380mm) / 7.3° (400 / 420mm)
    Frontsweep6.5 degrees
    Weight255g (400mm x 110mm bar)
    Included AccessoriesOverDrive Aero spacer, 2025+ TCR / Langma Spacer, 2023-2026 Propel / EnviLiv spacer, 2026+ Propel / EnviLiv spacer, OverDrive Aero shim, 1 1/4" to 1/8" shim, adjustable out-front computer mount

    Specifications are subject to change without notice.
